Post Processing Shaders

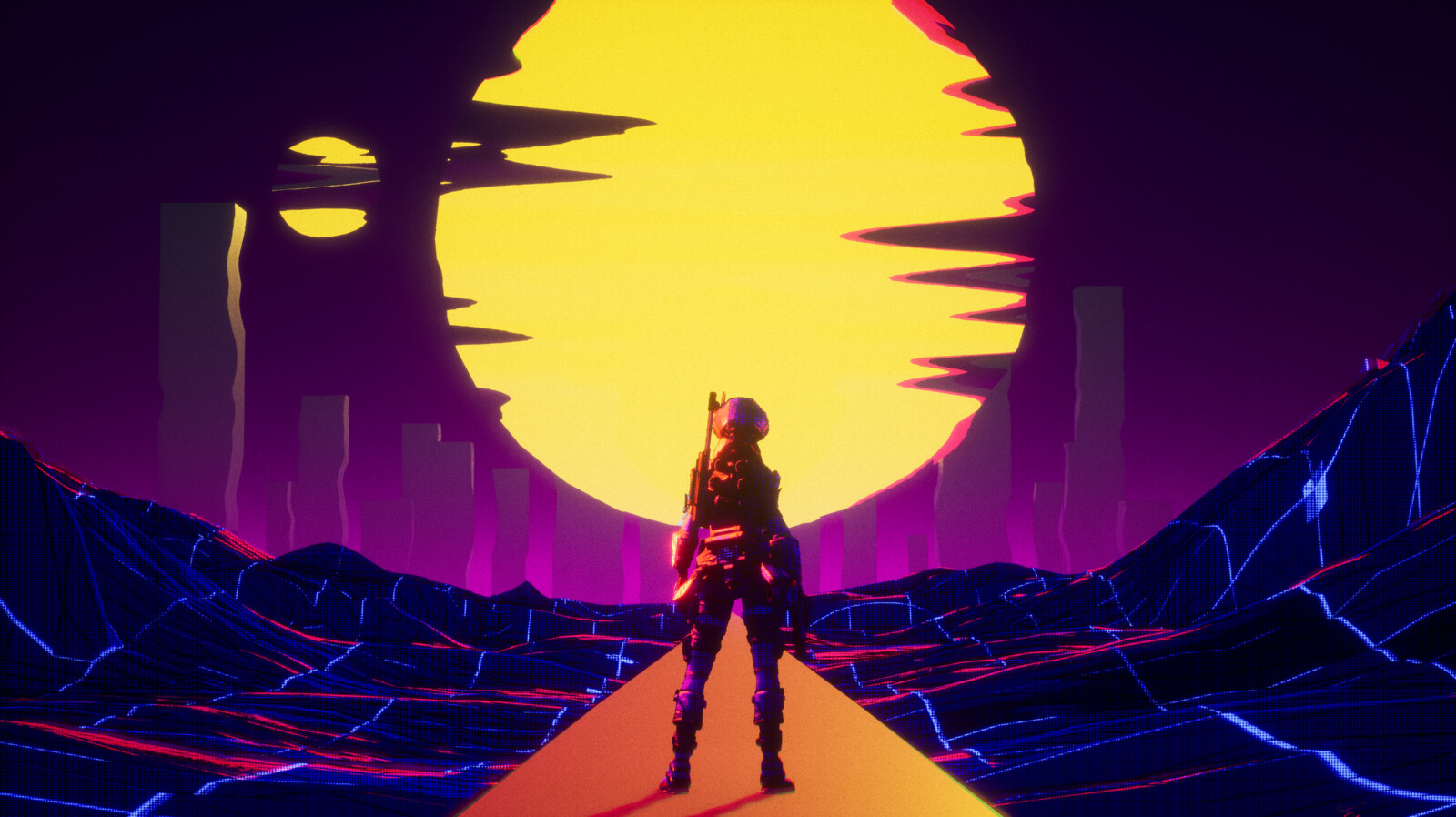

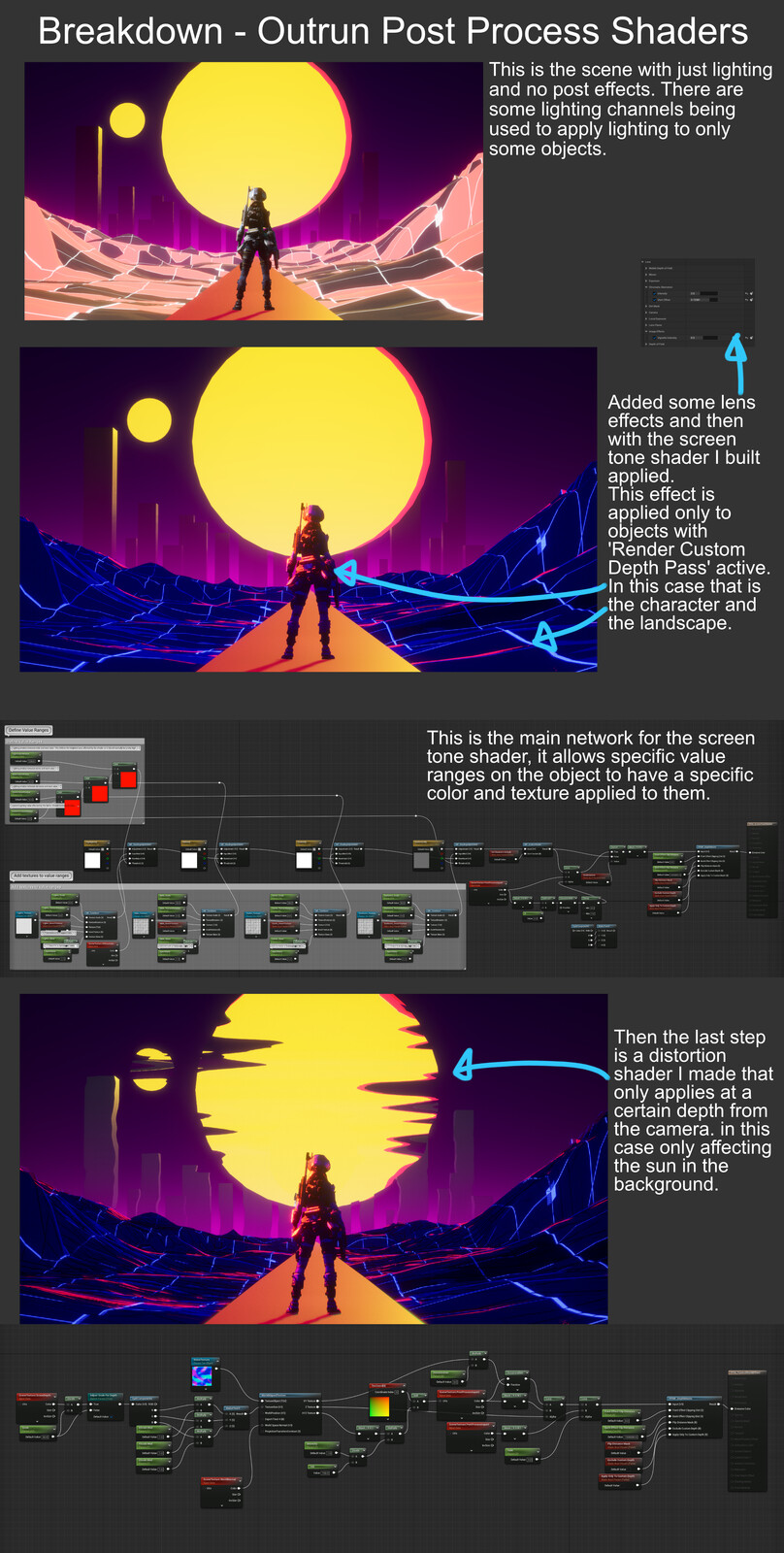

I have been working on understanding post process shaders and my first experiments have been to emulate a manga look and the outrun/vaporwave style. The main experimentation I've done so far is setting up the cel shading with a Screen Tone applied using Post Process materials, isolating elements in the post process volume using Custom Depth Stencils, and using Light Functions to add a hatching texture to the shadows. These two scenes were done using mostly the same master shaders. I used material instances to modify the master shaders to get the two different looks.
All of this was done in Unreal Engine 4

Cameron craig highresscreenshot00022

Unedited screen capture from Unreal Engine 4

Cameron craig highresscreenshot00002

Unedited screen capture from Unreal Engine 4

Cameron craig highresscreenshot00033

Unedited screen capture from Unreal Engine 4

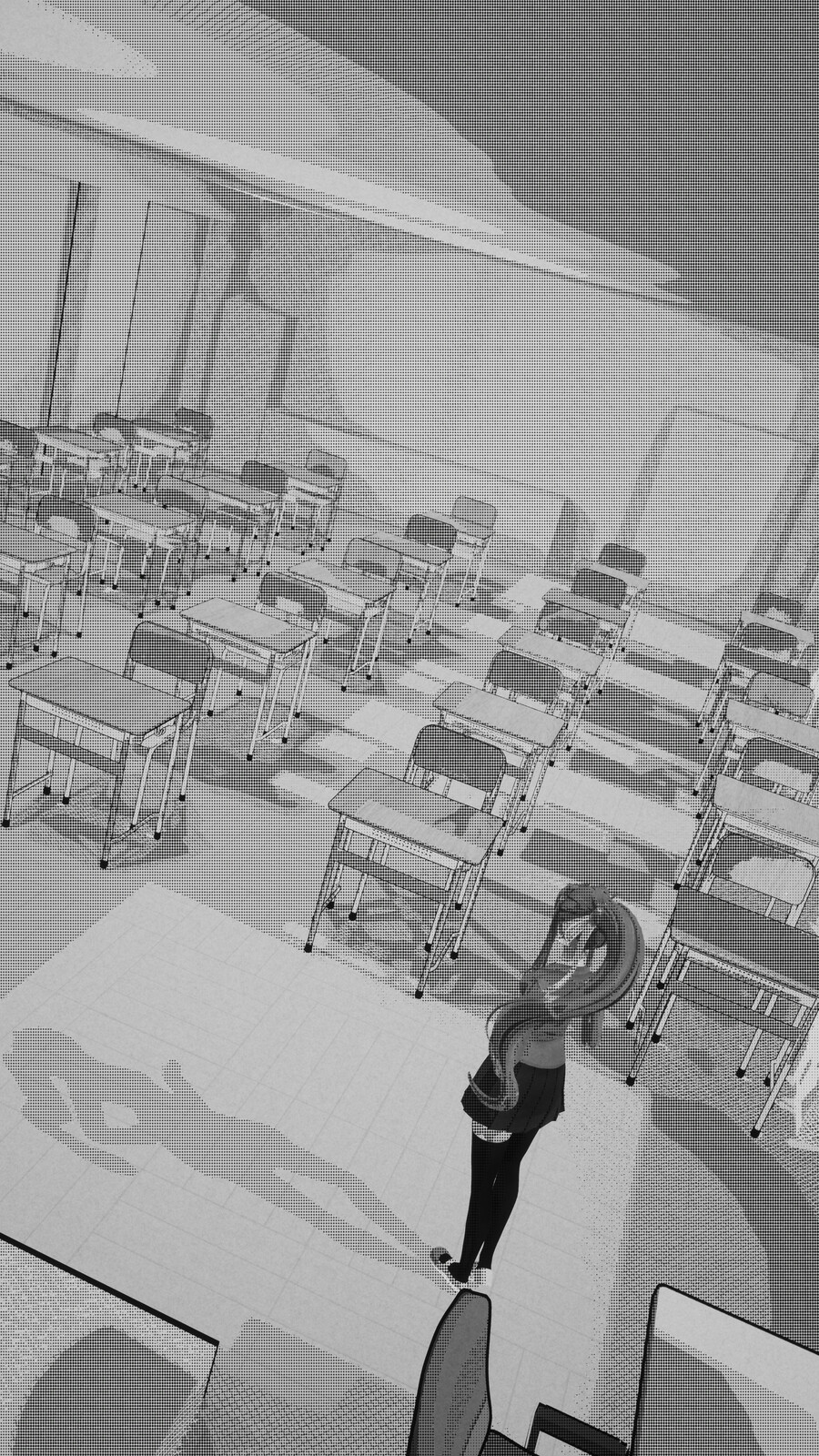

Cameron craig highresscreenshot00003 copy

Unedited screen capture from Unreal Engine 4

Cameron craig screen shot 2018 09 09 at 3 34 28 pm

This Post Process shader makes the cel shading work and applies a screen tone to the different values.

Cameron craig screen shot 2018 09 09 at 3 34 40 pm

This material function is used the add a screen tone to the cel shading.

Cameron craig screen shot 2018 09 09 at 3 34 53 pm

This material function helps break things down for applying the cel shading, it's what determines the threshold for each range of cel shading.

Cameron craig render 03

Green Screen effect for adjusting the character separate from the scene in post.

Cameron craig screen shot 2018 09 09 at 3 38 45 pm

This is the function used to cut out the characters using Custom Depth stencils.
